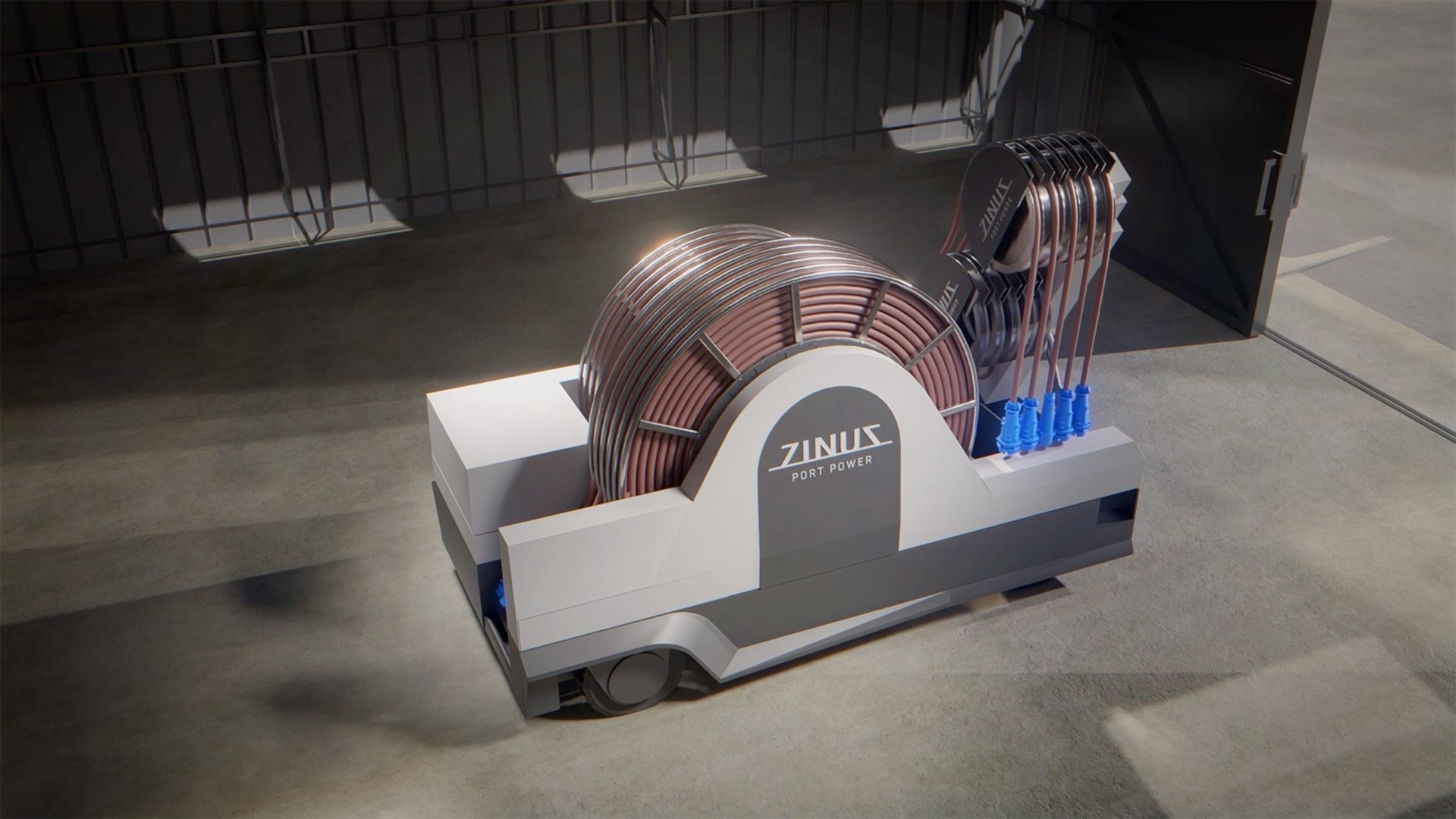

Zinus CMS NextGen is engineered to maximize flexibility, functionality, and space efficiency while delivering high operational performance in modern port environments.

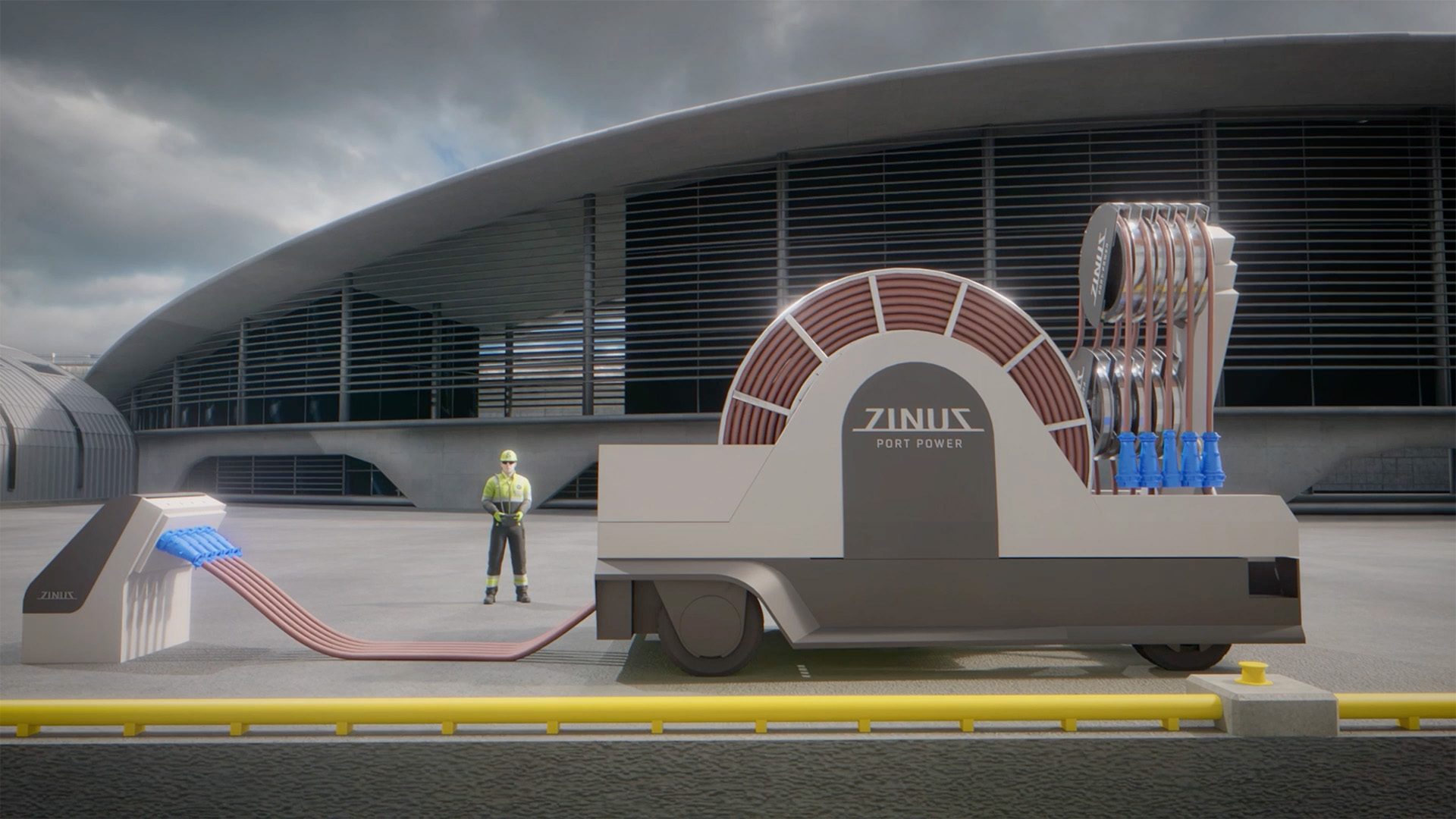

Designed for rapid vessel connection and minimal maintenance, the system provides a robust, future-ready solution for cruise port electrification. Its surface cable layout enables direct connection to Zinus cabinets, ensuring efficient and streamlined operations.

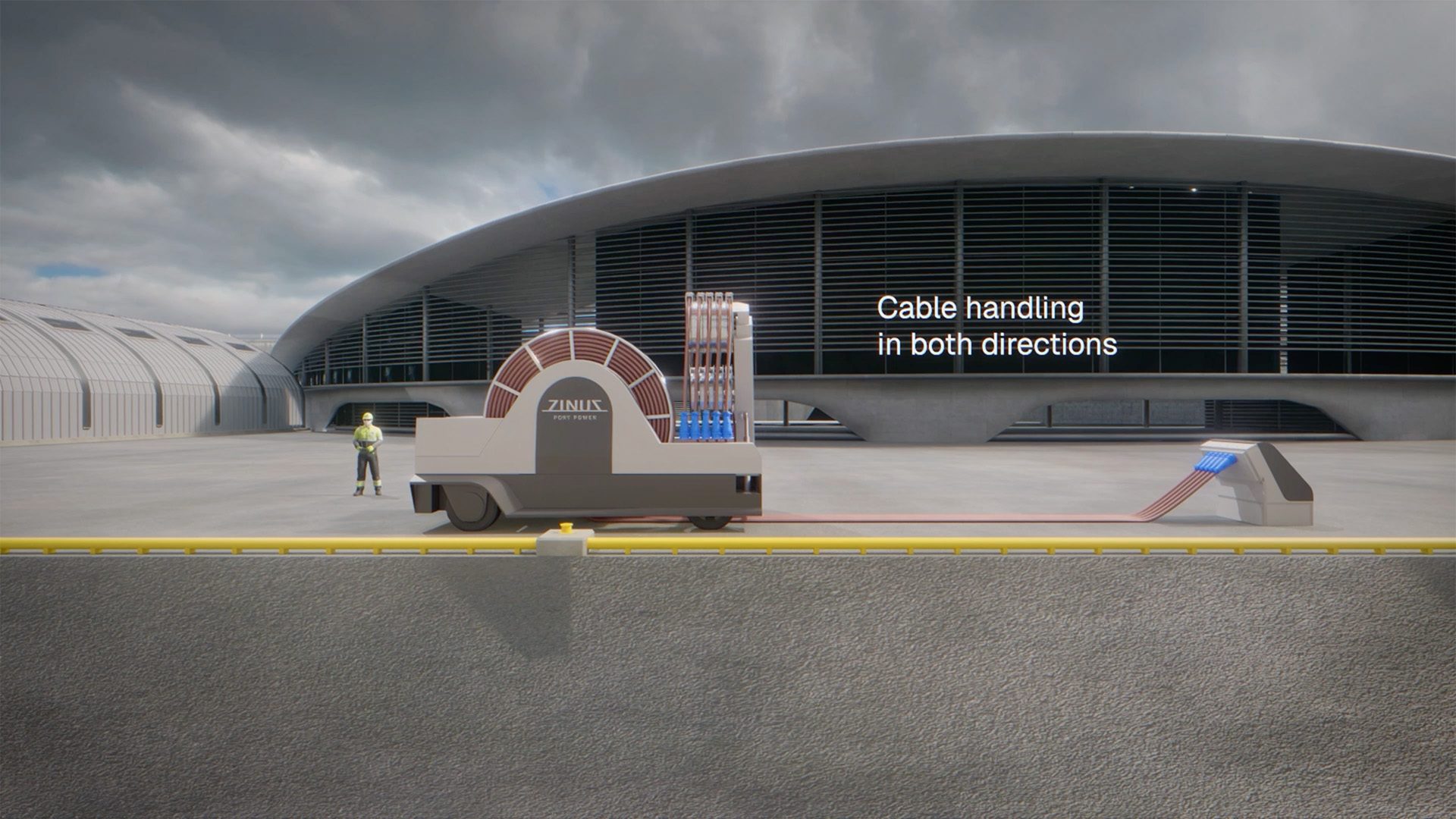

Cable layoutCable handling in both directions, maximizing distance and minimizing cabinet count.

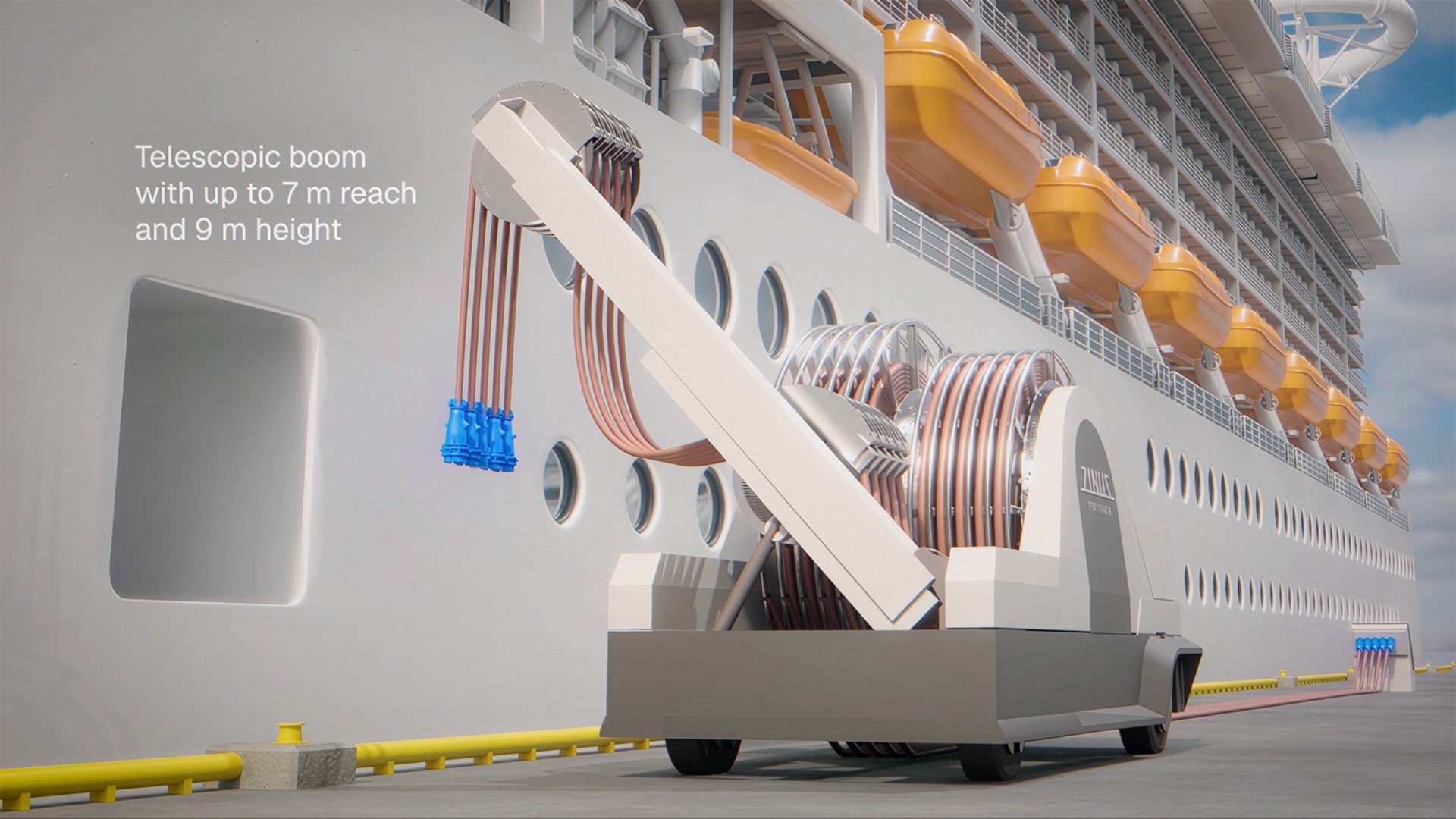

Accessible and adjustableTelescopic boom with up to 7 m reach and 9 m height and tidal compensation

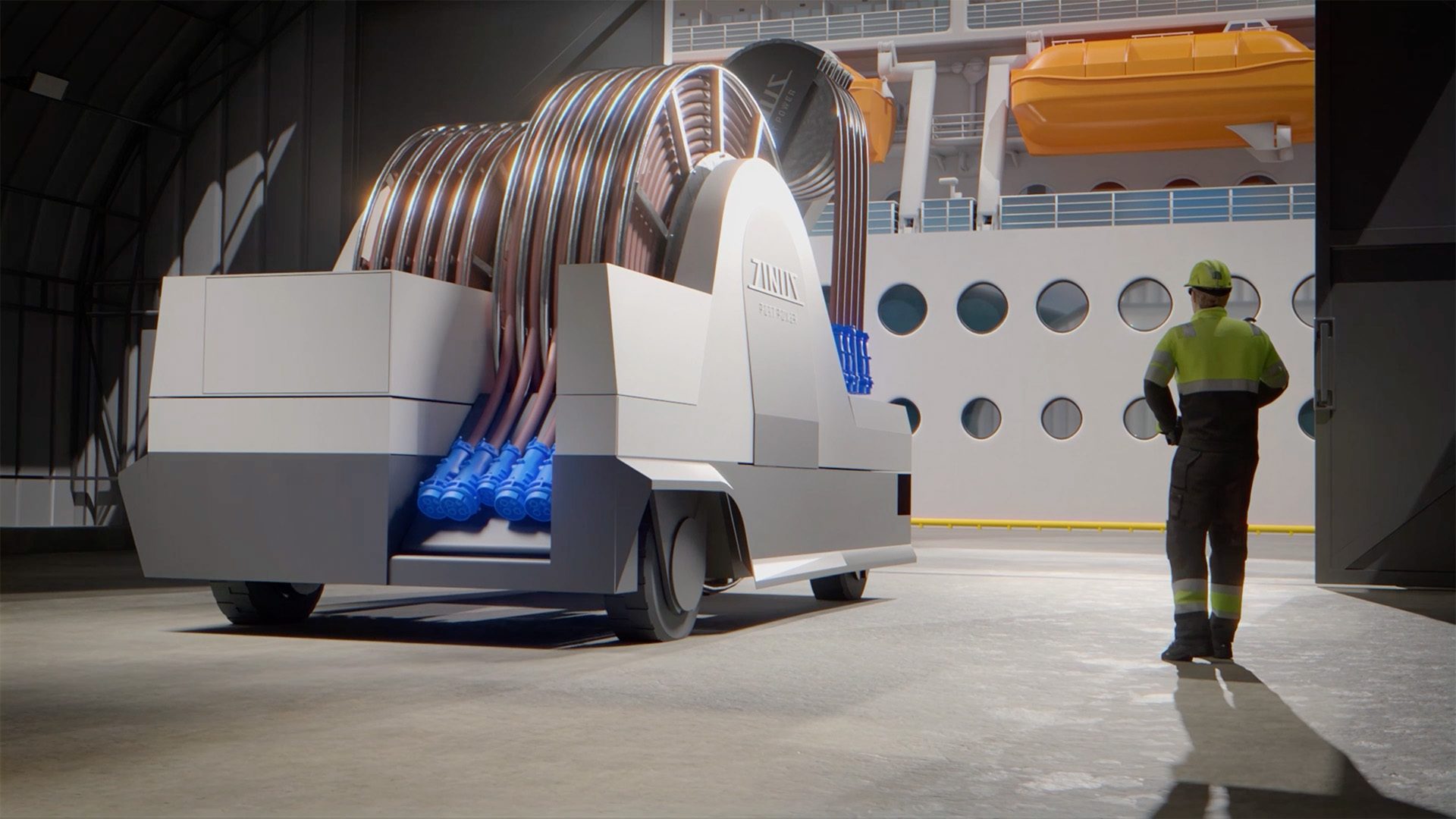

Simple and safe operationMobile solution operated by remote control. Requires minimum personnel for operation.| Application | |
|---|---|
| Vessel types | |
| Installation | Mobile CMS unit |
| Cable layout | Surface cable routing |
| Electrical | |
| Voltage | 6.6 / 11 kV |
| Apparent power | up to 20 MVA |
| Auxiliary supply | 21/27 kW, 3-phase 380–480 V AC |
| Physical | |
| Height | 3.4 m |
| Turning radius | 4.4 m |
| Temperature | −25 °C to +45 °C |
| Enclosure | IP56 |
| Standards | |
| Shore connection | |
| Data communication | |
| Machinery safety | |
| EMC | |
| Directives | |
Maximum uptime is our goal. Our service team supports your systems through commissioning, maintenance, upgrades and emergency response.
