The CRU500 is a high-capacity cable management system for cruise ship shore power connection. It streamlines the docking process and maximizes the vessel’s connected time while in port.
Fully electric with no hydraulics, and built with an enclosed structure that shields every moving part from the marine environment. Four power cables run in a protective cable chain, and the telescopic boom reaches up to 6 m.

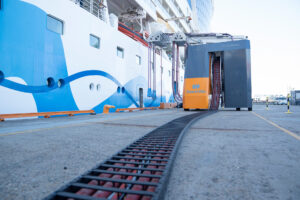

Cable layoutCable handling in both directions, maximizing distance and minimizing cabinet count.

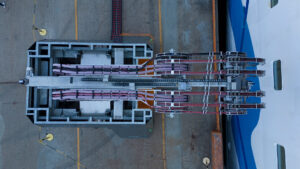

Telescopic boomUp to 6 m reach with a 2.3–5 m tilt range, and optional ±2 m lateral rotation
Weather proofRobust, non-corrosive construction using recyclable materials with ingress protection of IP56 minimum| Application | |
|---|---|
| Vessel types | |
| Installation | Mobile CMS unit |
| Cable layout | Surface with protective cable chain |
| Electrical | |
| Voltage | 6.6 / 11 kV |
| Apparent power | 16 MVA @ 11 kV · 9.7 MVA @ 6.6 kV |
| Maximum current | 850 A |
| Auxiliary supply | 3 × 400 V + N / 32 A |
| Physical | |
| Height | 5.6 m |
| Boom reach | Up to 6 m |
| Cable length | Shoreside 50 m + 4 m flying leads · shipside 15 m |
| Temperature | −15 °C to +45 °C |
| Enclosure | IP56 |
| Standards | |
| Shore connection | |
| Data communication | |
| Directives | |
Maximum uptime is our goal. Our service team supports your systems through commissioning, maintenance, upgrades and emergency response.
