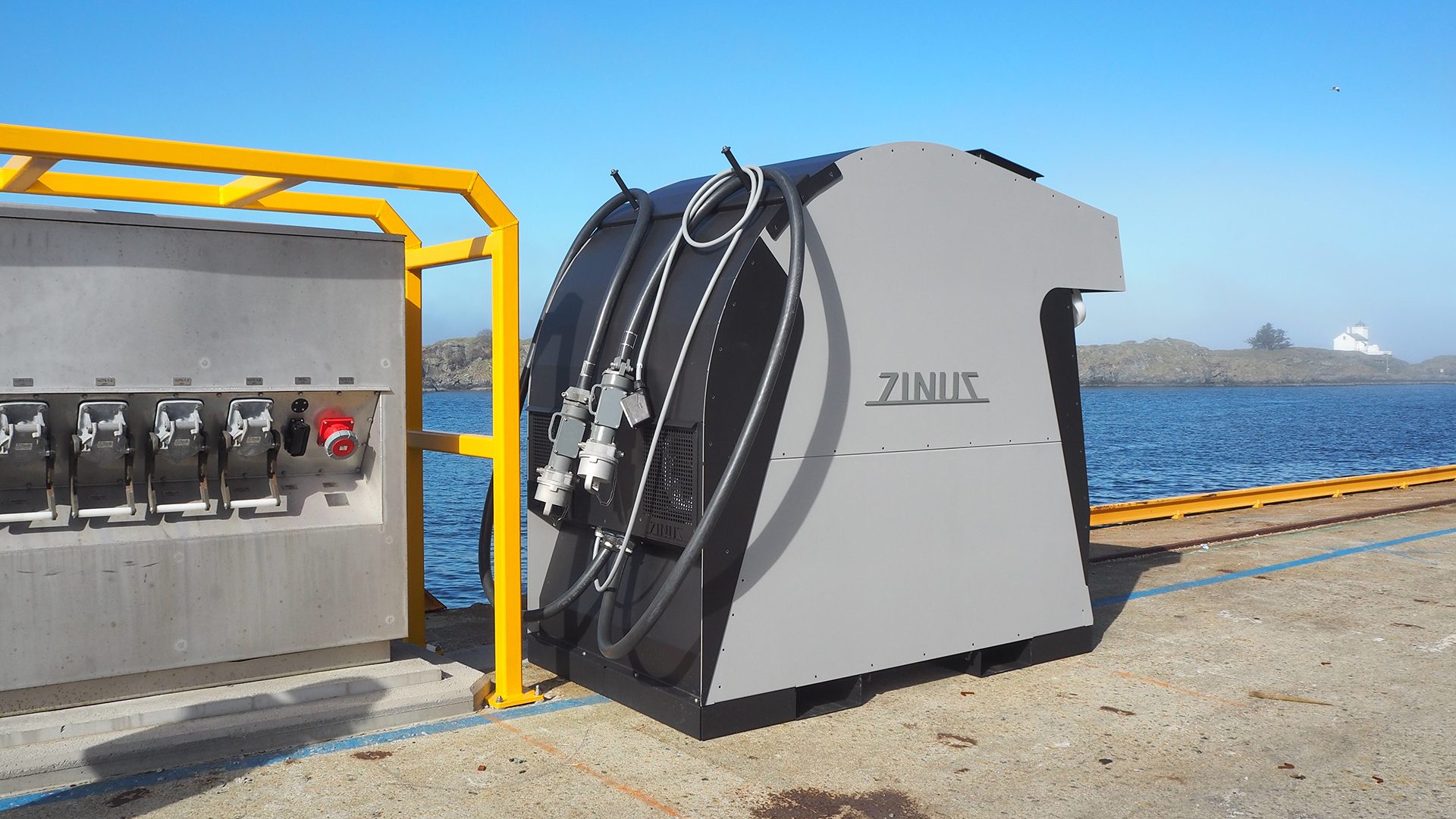

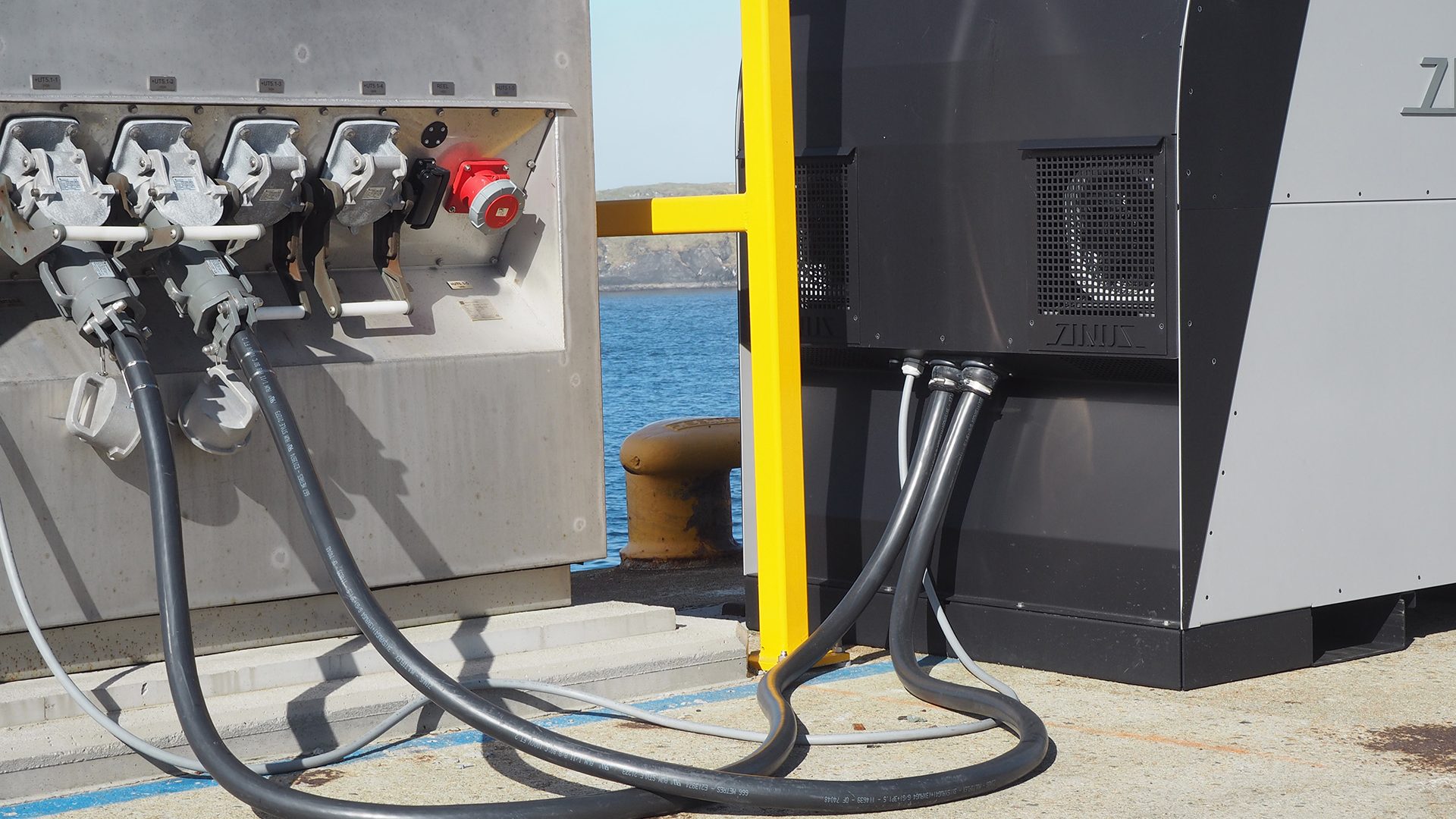

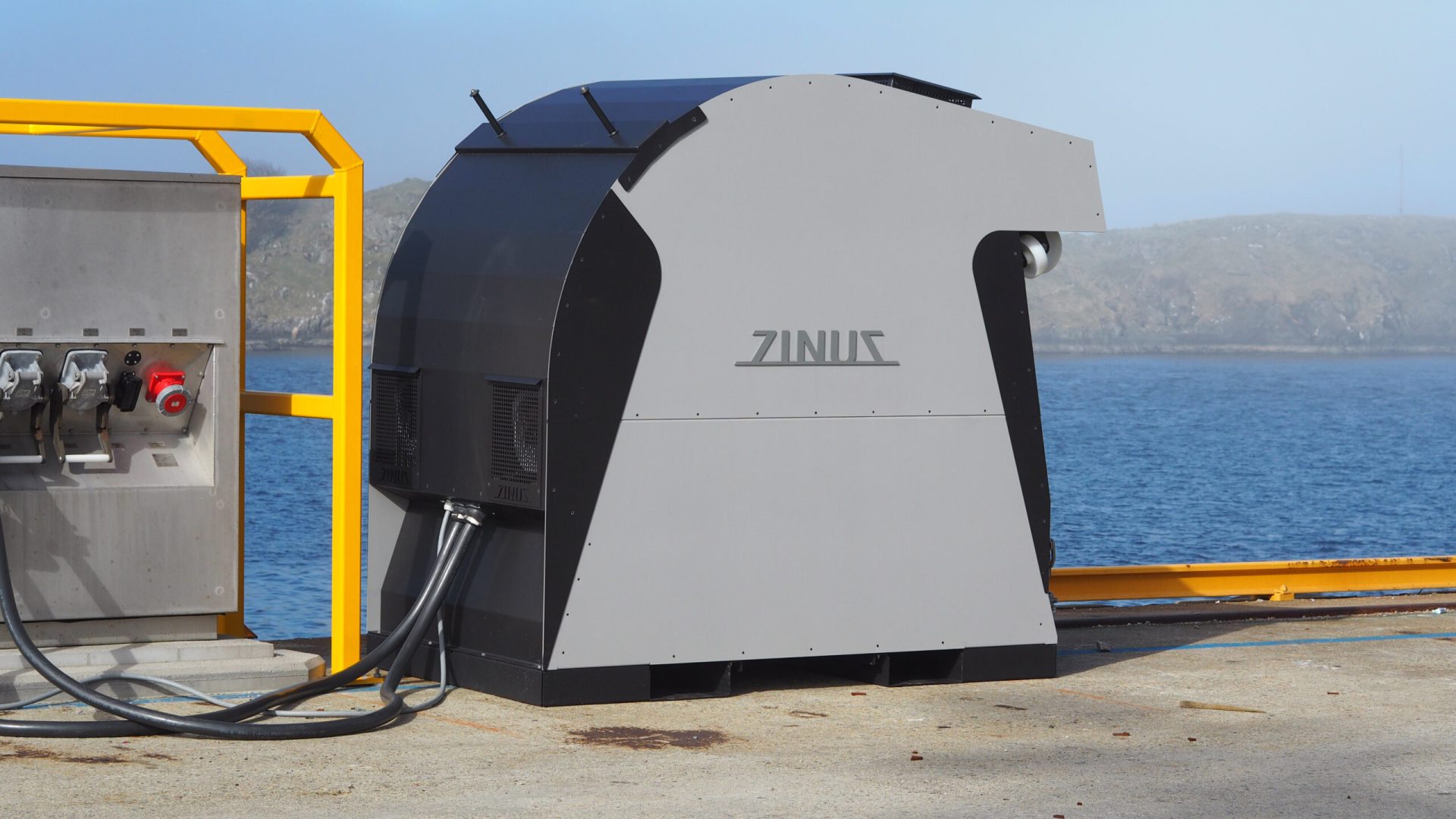

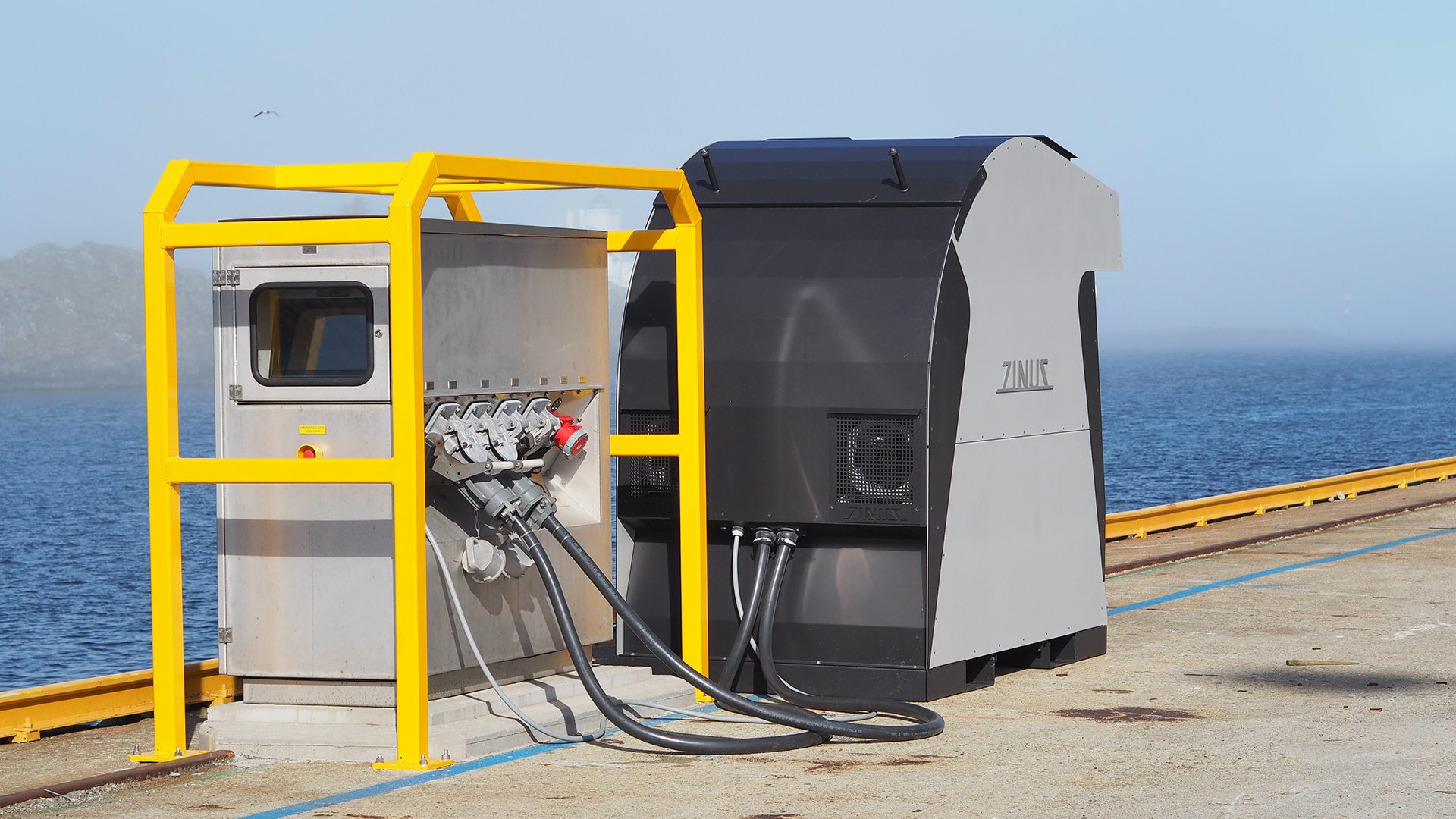

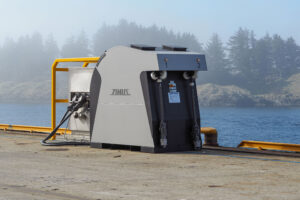

The ZPP115 is a compact and innovative cable handling solution designed to supply shore power to vessels. With its space efficient design, integrated control system, and dual cable drums, it ensures reliable and flexible operation in demanding port environments. The robust enclosure and patented connection system minimize maintenance while maximizing operational uptime.
Patented DiscConnect™ systemReplaces the slip-ring, and enables connection and disconnection of the power cables during reel operation, ensuring reliable performance and minimal maintenance requirements.

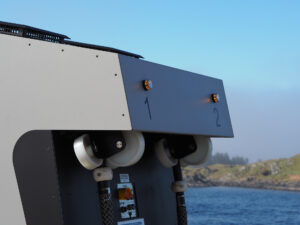

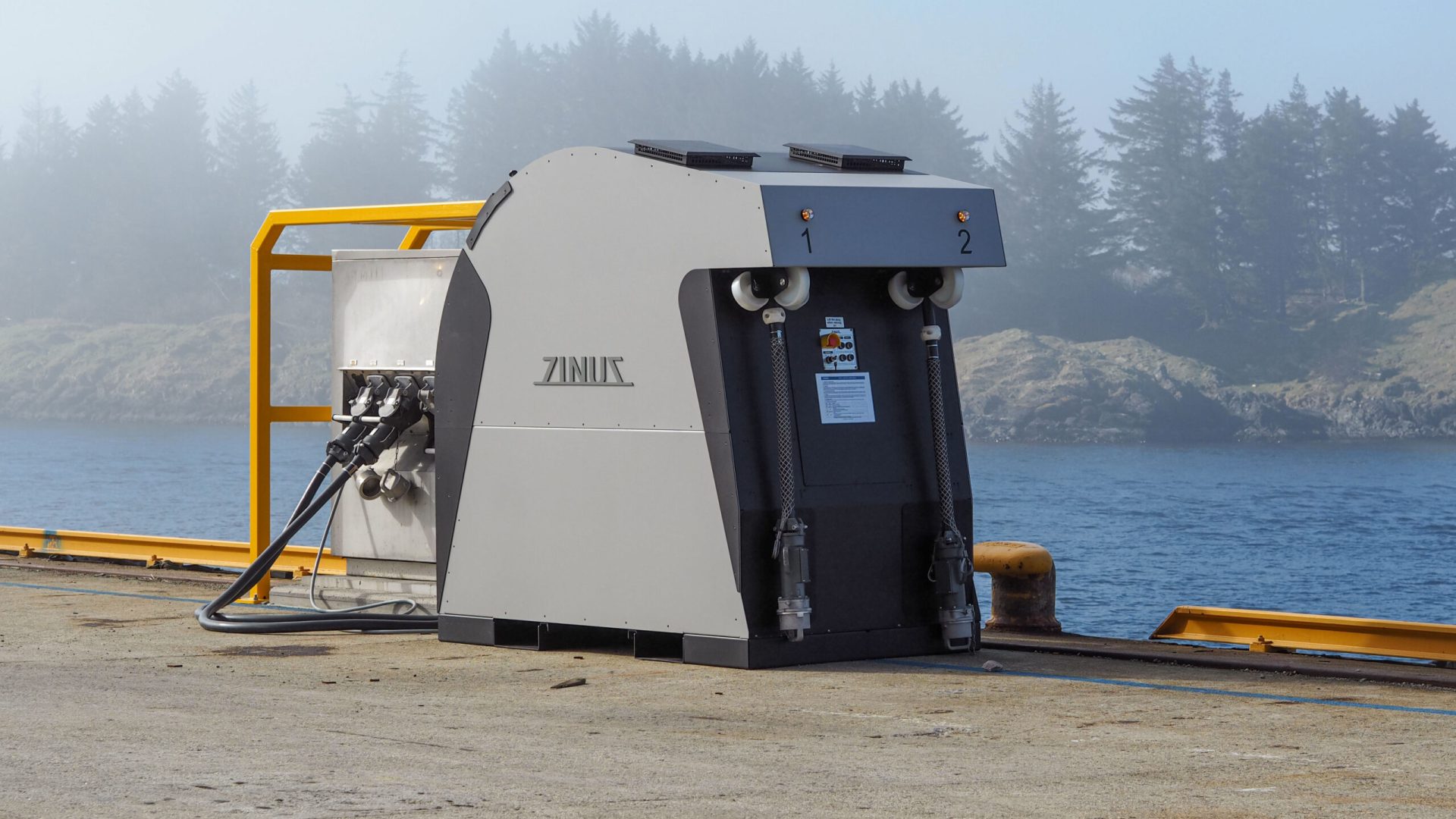

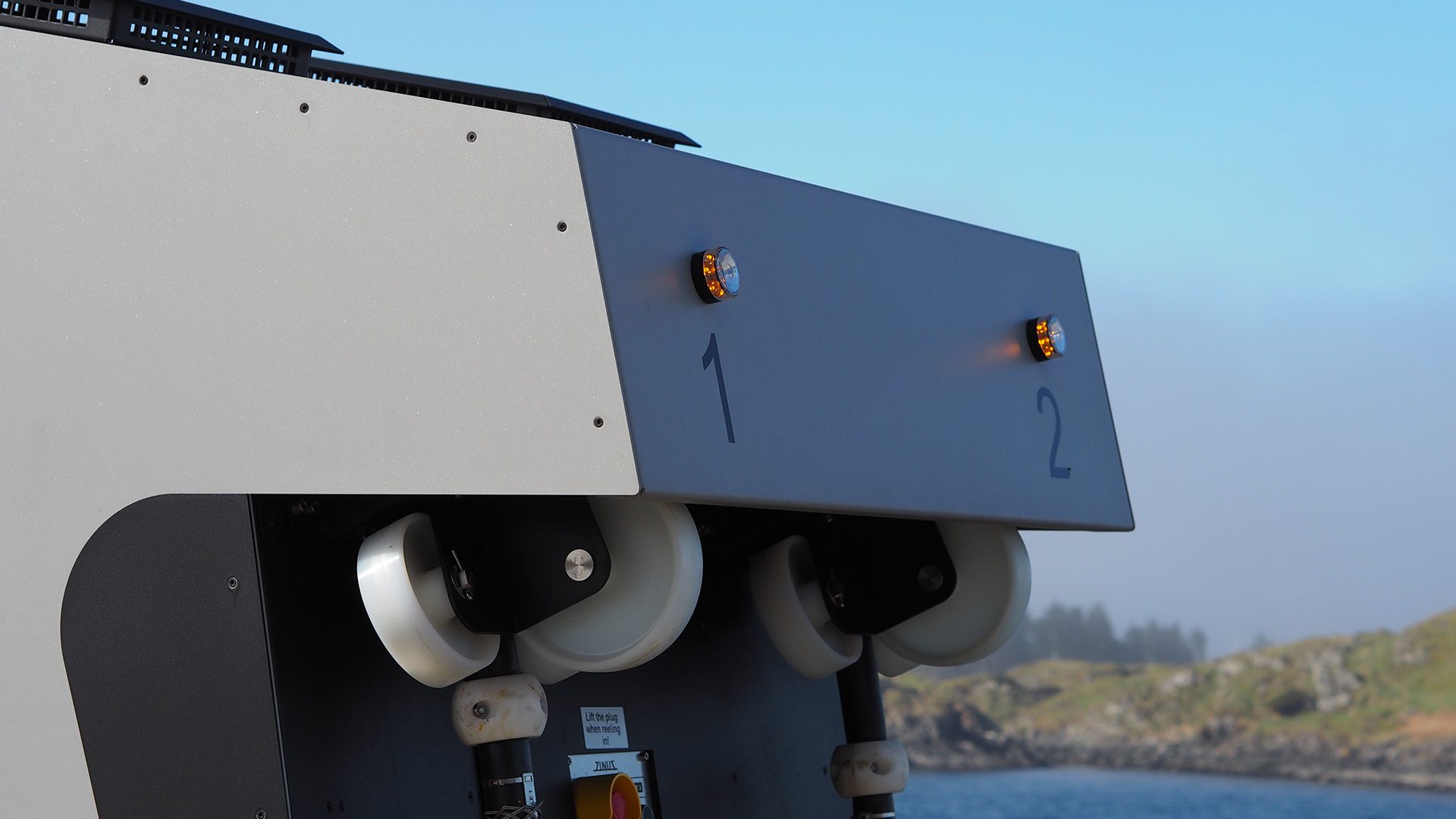

Independent cable drums Each drum runs on its own, with its own tension control, allow adaptable operation, making the system suitable for different vessel types and berth layouts.

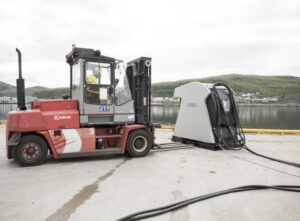

Portable or fixed installationBolted to the quay or moved between berths. Moved by forklift or motorised base, ensuring easy repositioning when needed.| Application | |
|---|---|
| Vessel types | |
| Installation | Fixed or portable |
| Cable layout | Dual cable drums, 2 × 45 m (30 m optional) |
| Electrical | |
| Voltage | 690 V AC |
| Current | 350 A |
| Auxiliary supply | 2 × 230 V AC / 10 A |
| Physical | |
| Height | 2.2 m |
| Weight | 1100–1300 kg (according to cable length) |
| Temperature | −15 °C to +30 °C (−30 °C with heating) |
| Enclosure | IP56 |
| Standards | |
| Shore connection | |
| Directives | |
Maximum uptime is our goal. Our service team supports your systems through commissioning, maintenance, upgrades and emergency response.
