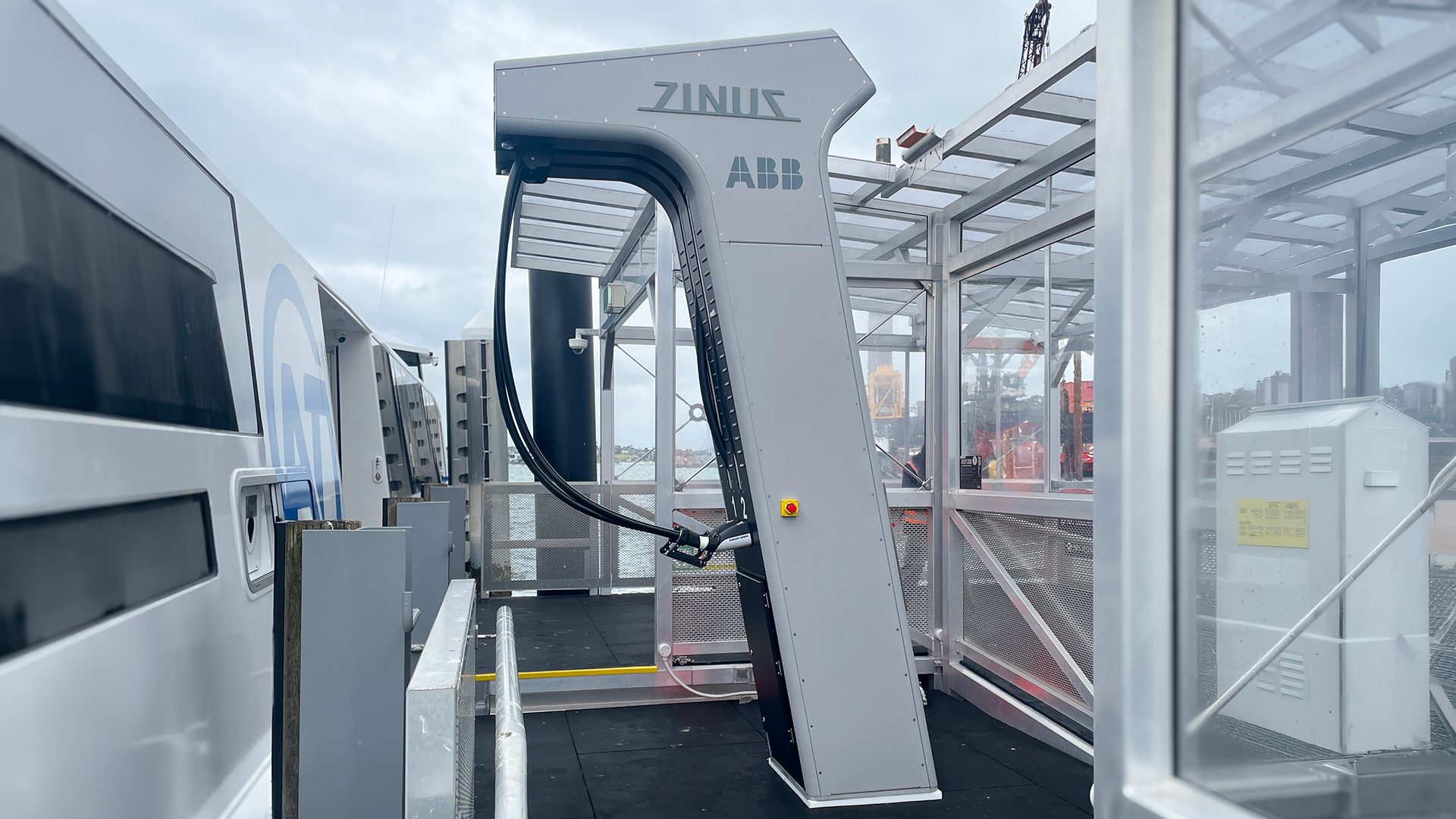

The Dual ZPP500MCS consists of 2 fully redundant liquid cooled charging cables. The system is designed for single-handed operation and instant max power availability.
Built with seawater-resistant materials and a protective design to withstand harsh marine environments with minimal maintenance. Its customizable design ensures adaptability to various port and vessel configurations.

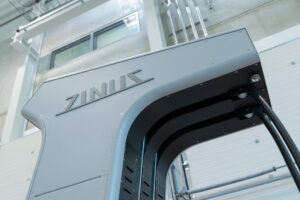

Tension controlTension controlled Cable Management System with tension overload alarm.

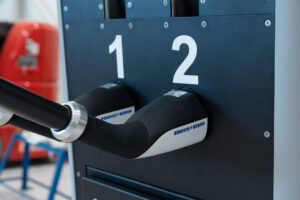

RedundancyTwo liquid-cooled charging cables. Each carries full capacity, and each is operated on its own.

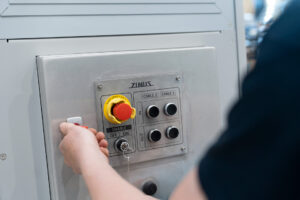

One operatorUser-friendly semi-automated vessel charging with connection time in 20 to 40 seconds.| Application | |
|---|---|
| Vessel types | |
| Installation | Fixed |
| Cables | Two liquid-cooled MCS cables, 5 or 6 m |
| Electrical | |
| Voltage | 1500 VDC |
| Charging capacity | 2 × 1500 A |
| Auxiliary supply | 4 kW, 230–480 V, 50/60 Hz |
| Physical | |
| Height | 3.3 m (5 m cable) / 3.8 m (6 m cable) |
| Temperature | −25 °C to +45 °C |
| Enclosure | IP56 |
| Standards | |
| Charging | |
| Also | |
| Directives | |
Maximum uptime is our goal. Our service team supports your systems through commissioning, maintenance, upgrades and emergency response.
