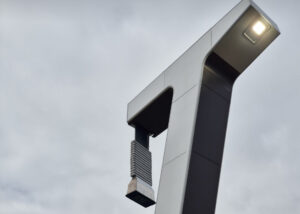

The ZPP800 is a fully autonomous cable management system developed for seamless high-power charging of vessels. Featuring automatic positioning and rapid connection to the onboard SWC200 connection unit, it eliminates the need for manual handling, maximizing vessel uptime. Its compact, robust design is engineered for reliable performance in harsh marine environments, with minimal maintenance requirements.
Fully automatedAutomatic positioning and rapid connection to the onboard SWC200 connection unit for fast, reliable charging.
Increased flexibilityThe optional SLR800 slider extends the operational range of the ZPP800 by enabling automatic sideways movement along the quay for efficient vessel alignment.
Aesthetic designRobust enclosure delivers reliable performance, minimal maintenance and aesthetic design, with optional harbour lighting.| Application | |
|---|---|
| Vessel types | |
| Installation | Fixed, connects to onboard SWC200 |
| Cable | 4 or 8 cables, 9 m with boom retracted |
| Electrical | |
| Voltage | DC up to 1500 V · AC up to 1000 V |
| Current, intermittent | DC up to 8000 A · AC up to 3 × 4000 A |
| Current, continuous | DC up to 5520 A · AC up to 3 × 2760 A |
| Control supply | 3 × 400 V AC + N, 16 A |
| Physical | |
| Height | 9.5 m |
| Rotation | ±90° |
| Temperature | −25 °C to +40 °C |
| Enclosure | IP56 |
| Standards | |
| Directives | |
Maximum uptime is our goal. Our service team supports your systems through commissioning, maintenance, upgrades and emergency response.
